Reference

Window types in punched openings

Five operation types cover nearly every punched opening on a commercial or residential project. The choice is usually driven by ventilation, egress, cleaning access, and where the opening sits in the wall — not by appearance alone.

Request a Quote

Fixed units do not open and give the best thermal numbers. Casements hinge at the side and swing fully clear, which is why they suit ventilation-priority and egress openings in homes. Awnings hinge at the head and shed rain while open. Projected units are commercial-grade top- or bottom-hinged sashes on arms, with specifiable limit stops for security and cleaning access. Hoppers hinge at the sill and tilt inward, typically low in a wall.

Fixed

Does not open

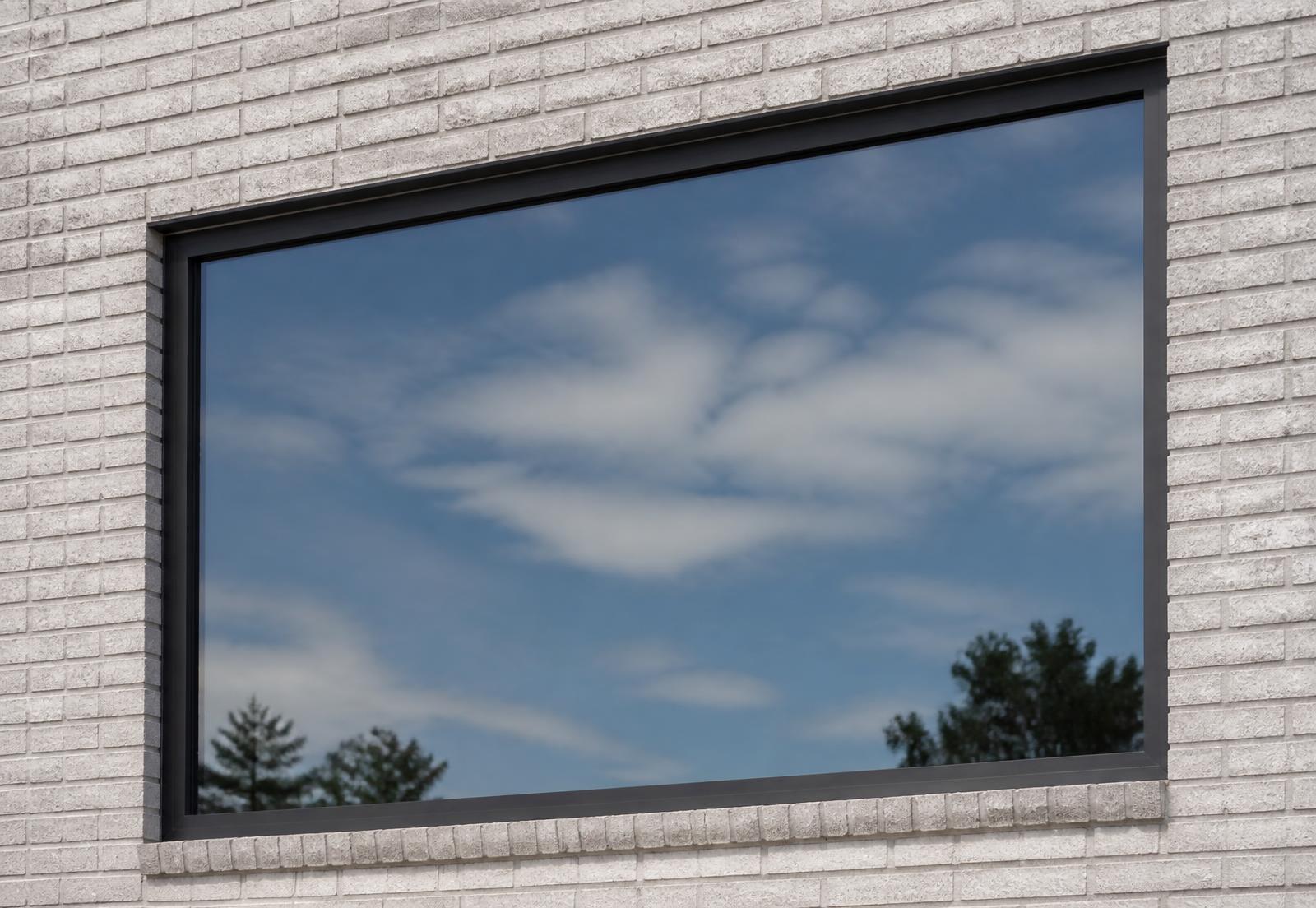

Large fixed aluminum picture window with no hardware set in a light masonry wall opening

Specified on both commercial and residential projects

A sealed lite in a frame. Best thermal and air-infiltration numbers of any type because there is no operating joint to seal, and the lowest cost per square foot of glass. Used for daylighting where ventilation comes from an adjacent operable unit or from mechanical systems.

Commercial use
Dominant in office and institutional elevations, usually combined with a small operable or vent unit in the same frame.
Residential use
Picture windows, stair landings, and transoms above operable units.

Casement

Side-hinged, swings out

Aluminum casement window swung outward on its side hinge showing the full clear opening

Specified mostly on residential projects

Hinged at the jamb and cranked outward. The full sash area opens, so casements give the largest clear opening for their size — which is why they are the usual answer at bedroom egress. The sash compresses against the frame when closed, giving strong air and water performance.

Commercial use
Multi-family bedrooms and any opening where clear-opening area governs.
Residential use
Bedrooms, kitchens over counters, and anywhere you want the whole opening to ventilate.

Awning

Top-hinged, swings out

Aluminum awning window hinged at the head, open outward at the bottom below a fixed lite

Specified on both commercial and residential projects

Hinged at the head and projecting out at the bottom. The open sash sheds water, so awnings can stay open in rain. Common at lower portions of a punched opening or as vent units below a fixed lite.

Commercial use
Vent units in classrooms, corridors, and stacked window assemblies.
Residential use
Bathrooms, basements above grade, and under fixed picture units.

Projected

Top- or bottom-hinged, projects out on arms

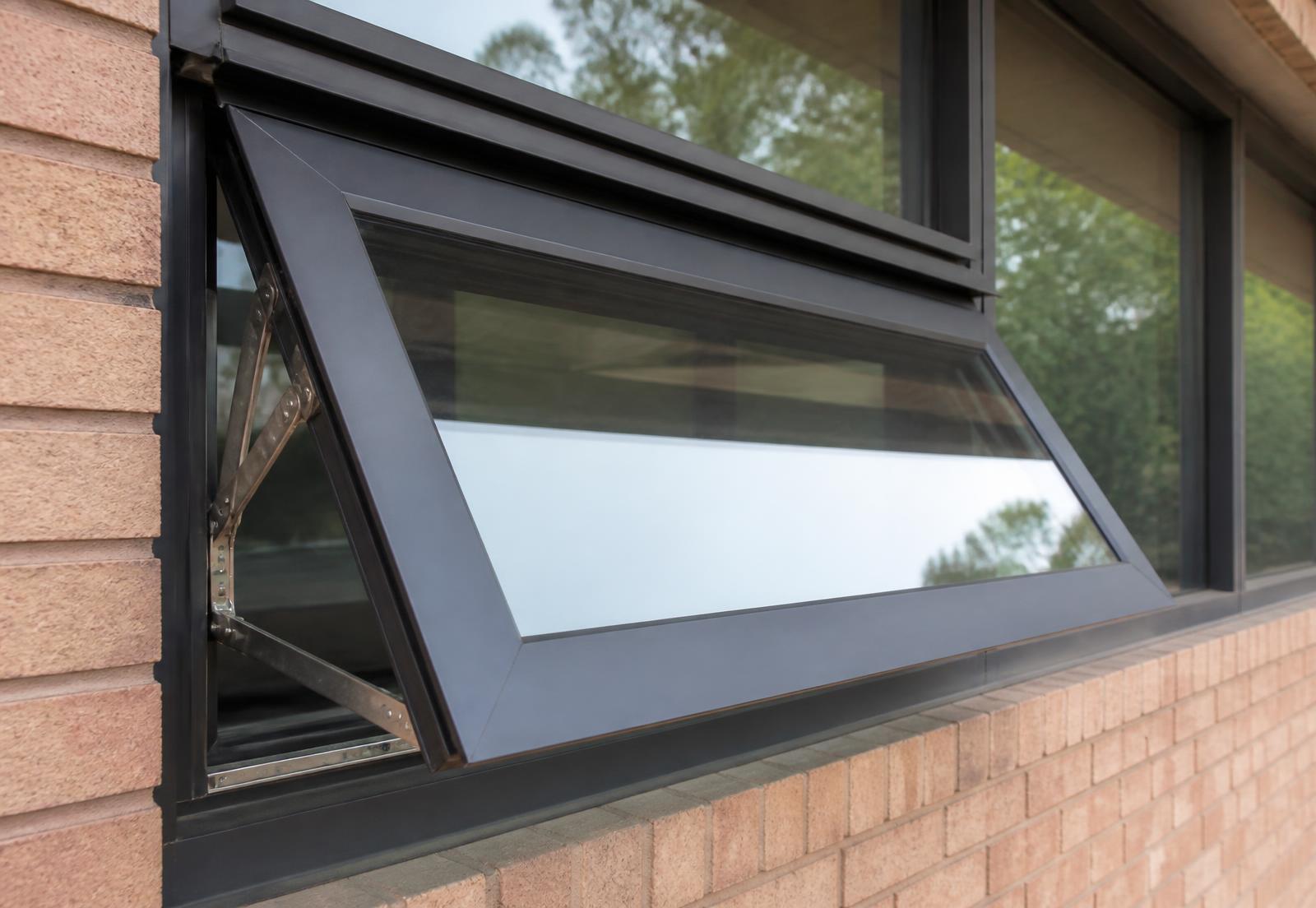

Commercial projected aluminum window open outward on stainless four-bar arms in a brick wall

Specified mostly on commercial projects

A commercial-grade projected unit rides on friction hinges or four-bar arms rather than a crank, and is built for repeated use in institutional buildings. Projection distance and limit stops can be specified for fall protection and cleaning access.

Commercial use
Schools, healthcare, and municipal buildings with hardware and limit-stop requirements in the spec.
Residential use
Rare in homes; specified when matching an existing commercial-style opening.

Hopper

Bottom-hinged, swings in

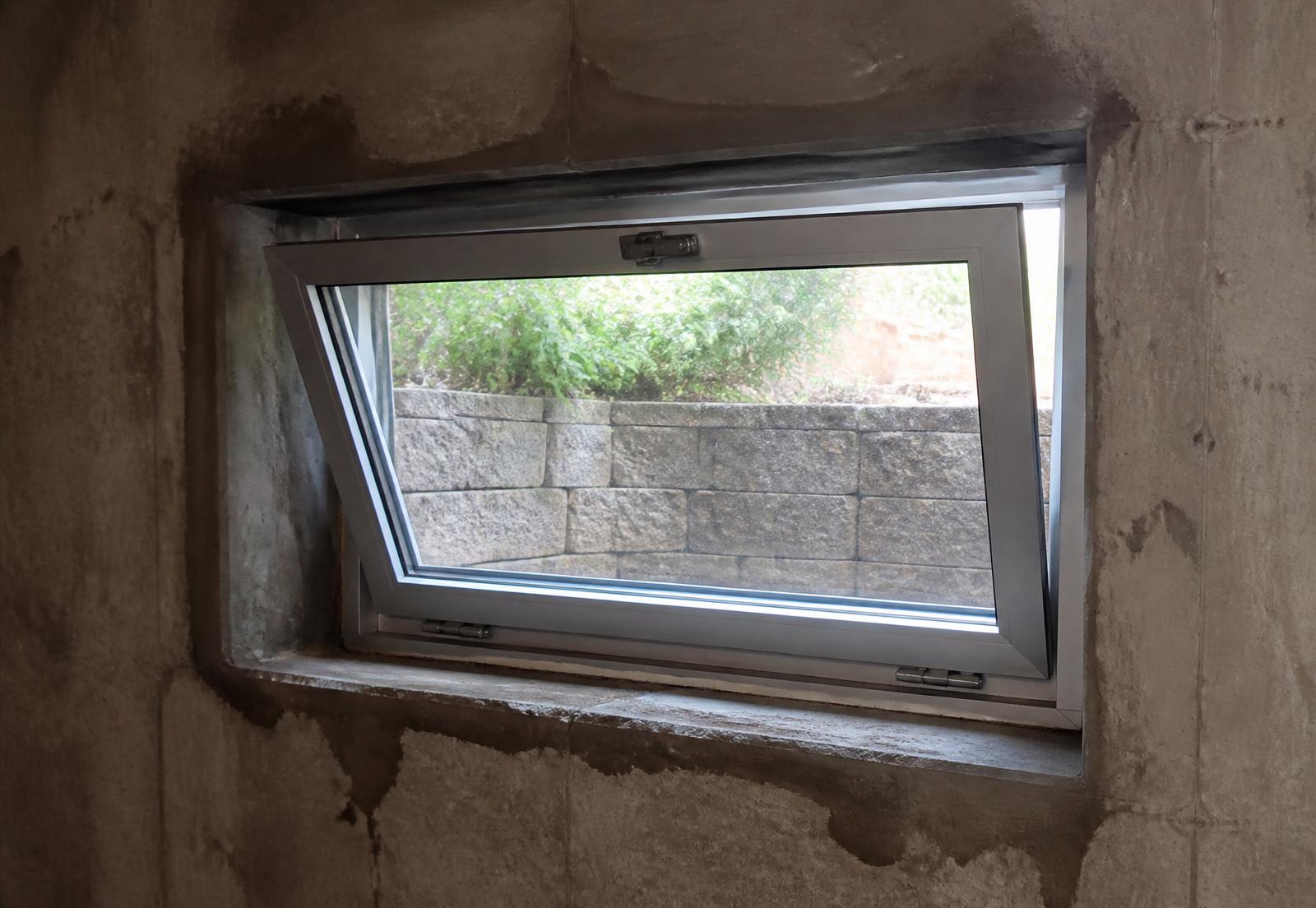

Aluminum hopper window tilted inward from its sill hinge in a concrete basement wall

Specified on both commercial and residential projects

Hinged at the sill and tilting inward. Because it opens into the room, a hopper is easy to operate and clean from inside, and is often used low in a wall where an out-swinging sash would obstruct a walkway.

Commercial use
Basement and below-grade-adjacent openings, mechanical spaces, and corridors where exterior projection is not allowed.
Residential use
Basements and utility rooms.

Combinations

Most openings are a combination, not a single type

A single punched opening frequently holds a large fixed lite with an awning or hopper vent below, or a pair of casements flanking a fixed center. Units are joined with structural mullions inside one frame, so the assembly is installed as a single piece and the perimeter is sealed once. Performance is then reported for the assembly, not the individual lites — which matters when the spec calls for an assembly U-factor.

By buyer path

Which types show up on which kind of project

Fixed
Specified on both commercial and residential projects. Relevant on both paths — start with commercial window systems or residential windows.
Casement
Specified mostly on residential projects. See how it is used in a home replacement on residential windows, or in schedule terms on commercial window systems.
Awning
Specified on both commercial and residential projects. Relevant on both paths — start with commercial window systems or residential windows.
Projected
Specified mostly on commercial projects. See how it is called out in a schedule on commercial window systems or residential windows.
Hopper
Specified on both commercial and residential projects. Relevant on both paths — start with commercial window systems or residential windows.

FAQ

Choosing between operation types

Which window type gives the most ventilation?+

A casement, because the entire sash swings clear of the opening. An awning or projected unit of the same size ventilates less since the sash only tilts partway out, and a fixed unit provides none. Where an opening has to both ventilate and meet egress, a casement is usually the answer.

What is the difference between an awning, a projected, and a hopper window?+

All three tilt rather than swing sideways. An awning is hinged at the head and opens outward at the bottom. A hopper is hinged at the sill and tilts inward into the room. A projected unit is a commercial-grade version that rides on four-bar or friction arms instead of a crank, with specifiable projection distance and limit stops.

Which type is best for a bedroom that needs egress?+

Almost always a casement. Egress is judged on clear opening — the actual hole once the sash is fully open — and a casement gives close to its full sash area. Awning, hopper, sliding, and double-hung units surrender part of the opening, so they need a physically larger hole to reach the same clear opening.

Can different types be combined in one opening?+

Yes, and most punched openings are combinations. A large fixed lite with an awning or hopper vent below, or a pair of casements flanking a fixed center, are joined with structural mullions inside a single frame. The assembly is installed as one piece and the perimeter is sealed once, and performance is then reported for the whole assembly.

Are fixed windows cheaper than operable ones?+

Yes, meaningfully. A fixed unit has no hardware, no weatherstrip at an operating joint, and no screen, so it costs less per square foot of glass and delivers better air-infiltration and thermal numbers. That is why commercial elevations typically use mostly fixed lites with a small number of vent units for ventilation.

Which types do you supply for homes versus commercial buildings?+

The same five operation types cover both, but the frame system differs. Residential projects lean on casement, awning, fixed, and hopper units in a residential-grade thermally broken frame. Commercial projects use heavier frames with higher performance class and grade, and projected units appear almost exclusively there.
